elan impression 40.1

Elan I40.1

ZUNANJOST

Elan I40.1

NOTRANJOST

Elan I40.1

NOVA ZUNANJOST

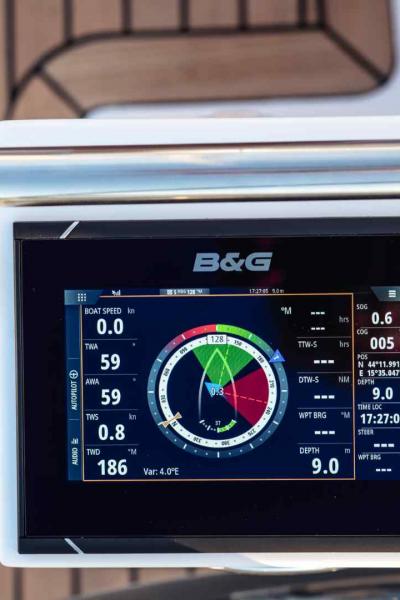

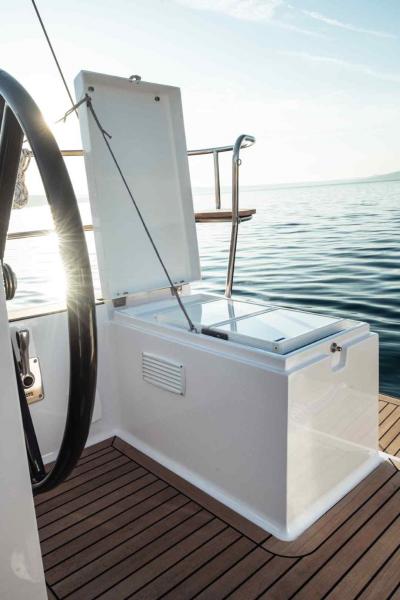

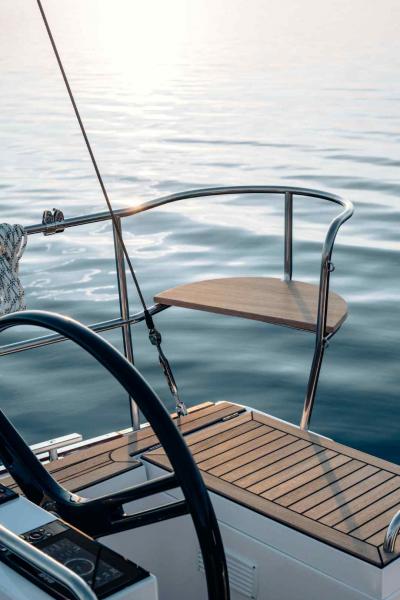

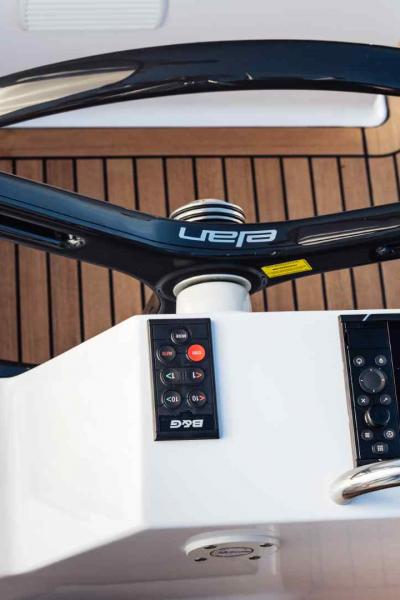

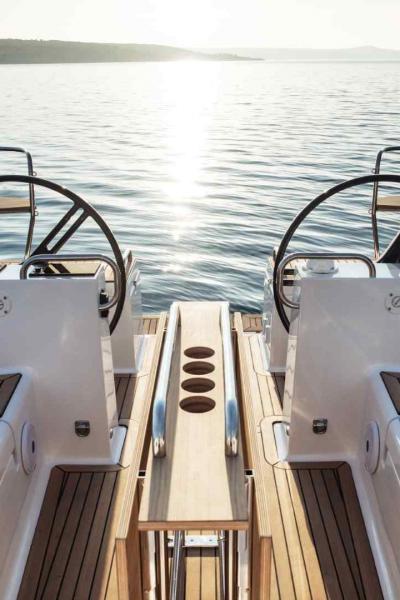

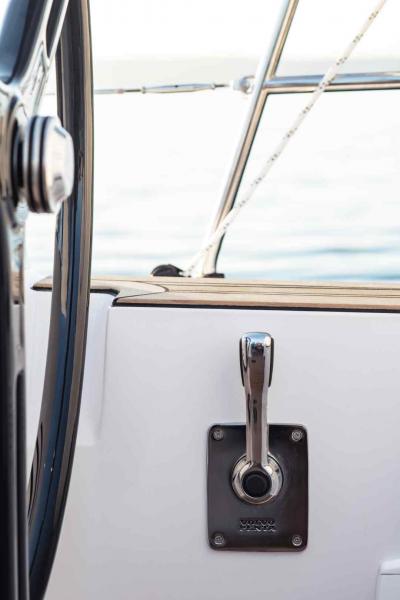

The I40.1’s modernized deck is a sight to behold. The new vertical transom allows for more cockpit space, a modern look, and the option of a large or small bathing platform – the size of which also determines either an enclosed transom or a sportier open transom feel. The addition of two aft storage boxes can be upgraded with a grill, a fridge, or a sink. Still reigning above are the iconic Elan Impression transom seats, which are always taken first by an enthusiastic crew! The steering pedestals allow for 9″ electronics, and the practical steering wheels are made of light composite. Walking past the large, fold-down table with drink holders is a breeze, as is moving around the cockpit and handling the winches. The table was designed to be accommodating when moored and practical when sailing, thanks to the integrated handrail and cupholders.

Elan I40.1

NOVA NOTRANJOST

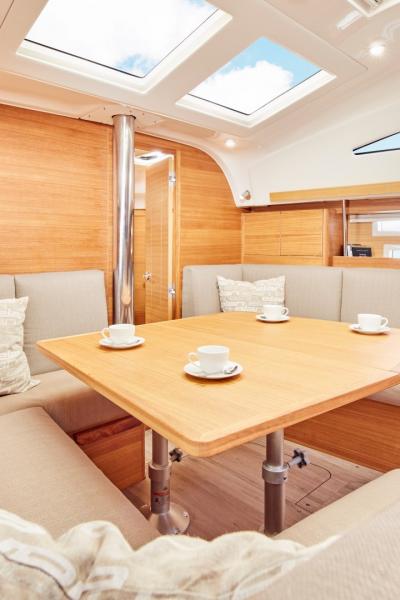

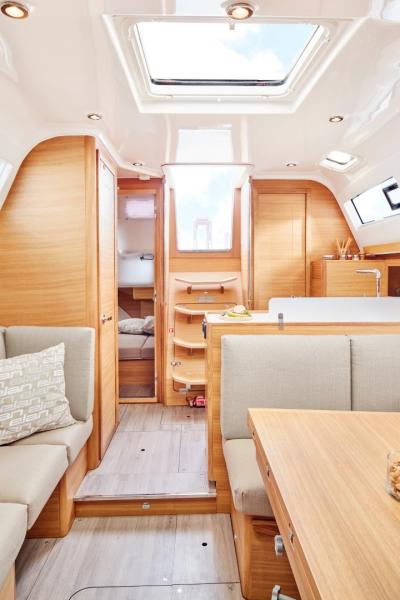

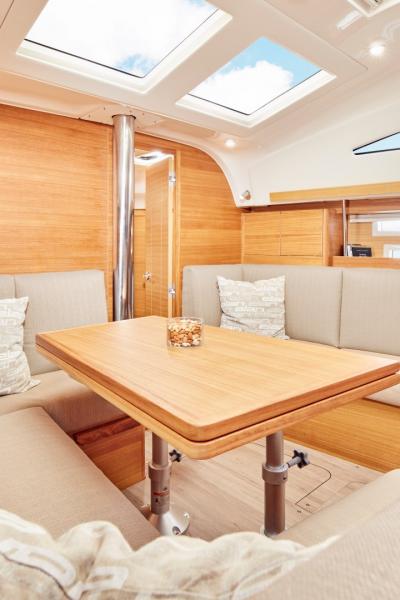

Not many can reach as high a standard as a company with more than seventy years of experience in woodworking and carpentry. Elan’s craftsmen had always been leaps and bounds ahead of the competition – and their work with the new Impression 40.1 pushes the limits even further. The interior furniture is made from the iroko wood veneer enhanced by solid iroko wood finish. Iroko (or African teak) is beautiful and durable and combined with smart design and placement it makes the interior truly stand out. The spacious and light saloon will delight all guests, and the galley with a 130 l front-opening fridge will make life easier when cruising. Available in four different cabin layout configurations, the I40.1 can be customized to suit any need.

Tehnične

SPECIFIKACIJE

Length Overall 11.99 m | 39’4’’ ft
Hull length 11.48 m | 37’8’’ ft
Length at waterline 10.00 m | 32’1’’ ft
Beam 3.91 m | 12’10’’ ft
Draft 1.80 m | 5’11’’ ft, (opt1. 1.50m | 4’11’’ ft)
Light displacement 8.368 kg | 18,4 lbs
Ballast 2.545 kg | 5,6 lbs or 2.479 kg | 5.5 lbs
Water capacity (standard) 240 liters | 63 US gal
Water capacity (option) 520 liters | 137 US gal
Fuel capacity 146 liters | 38 US gal
Engine Volvo (standard) 20 kW | 29 HP
Engine Yanmar (option) 20 kW / 29 HP
Engine Volvo (option) 37 kW | 50 HP
Air draft 17.60 m | 57’9’’ ft
Mainsail 37.9 m2 | 407’9’’ sq ft
Furling 31.59 m2 | 340’1’’ sq ft
Genoa 38.1 m2 | 410’1’’ sq ft
Gennaker 98.0 m2 | 1054’8’’ sq ft
 I 13.96 m | 45’10’’ ft
 J 3.90 m | 12’9’’ ft
 P 13.00 m | 42’8’’ ft
 E 4.86 m | 15’11’’ ft



Standardna oprema

Dodatna oprema

Elan I40.1

MODELI
